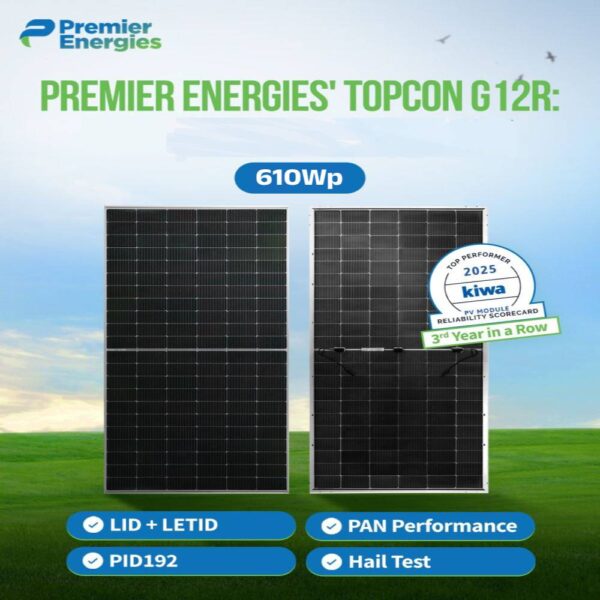

PREMIER ENERGIES 610 Wp G12R TOPCon Solar Panel
₹14,000.00
PREMIER’s G12R Monocrystalline Bifacial Topcon Cell
(182.2mm x 210mm)
-
High Conversion Efficiency:
Our solar cells enhance efficiency through superior rear surface reflection, maximizing photovoltaic conversion and energy utilization. With an average efficiency of 24.5% and a bifaciality factor of 85%, they offer exceptional performance and energy output.
-
Low Degradation Rate
Our cells maintain stable efficiency across diverse lighting conditions, ensuring prolonged lifespan and consistent energy output.
-
Temperature Resilience
Engineered for high temperatures, our cells maintain efficiency in even harsh environments, making them ideal for regions with intense sunlight or hot climates. With a Power Temperature Coefficient as low as -0.30%/°C, they ensure consistent performance in extreme conditions.
-
Anti-PID (Potential Induced Degradation)
Our technology effectively reduces efficiency losses resulting from impurities in the electrolyte, thereby guaranteeing dependable performance under challenging conditions. With outstanding Anti-PID capabilities, we attain PID degradation levels as low as 0.5%.
-
Degradation Induced by Low Light
The relative conversion efficiency is 97% when subjected to low-light conditions of 200w/m2.
MODULE FEATURES
SMBB TECHNOLOGY
PID Resistance
Higher Power Output
Auto Bussing & Soldering Technology
Enhanced Mechanical Load
Description
Series Name | |
Series Power Range (Wp) | 600-630 |
Model Name | PE-132-610 THGB- G12R |
Warranty Years | 12 |
Primary (Years, % Output Power) | 30, 87.4 |
Voltage at Maximum Power, Vmpp (V) At STC | 40.52 |
Current at Maximum Power, Impp (A) At STC | 15.06 |
Open Circuit Voltage, Voc (V) At STC | 48.58 |
Short Circuit Current, Isc (A) At STC | 15.98 |
Panel Efficiency (%) At STC | 22.58 |
Temperature coefficient of Pmax (%/°C) | -0.29 |
Temperature coefficient of Voc (%/°C) | -0.25 |
Temperature coefficient of Isc (%/°C) | 0.045 |
Maximum System Voltage (V) | 1500 |
Series Fuse Rating (A) | 30 |
Cell Number | 132 |
Glass Type | High Transmission, Heat Strengthened, AR coating Glass |
Glass Thickness (mm) | 2 |
Frame Type | Anodized Aluminium Alloy |
Junction Box Diodes | 3 |
Junction Box Protection Class | IP68 |
Cable Crosssection (mm²) | 4 |
Cable Length (mm) | 1400 |
Additional information
Weight | 33.5 kg |
---|---|
Dimensions | 238 × 113 × 3.5 cm |
